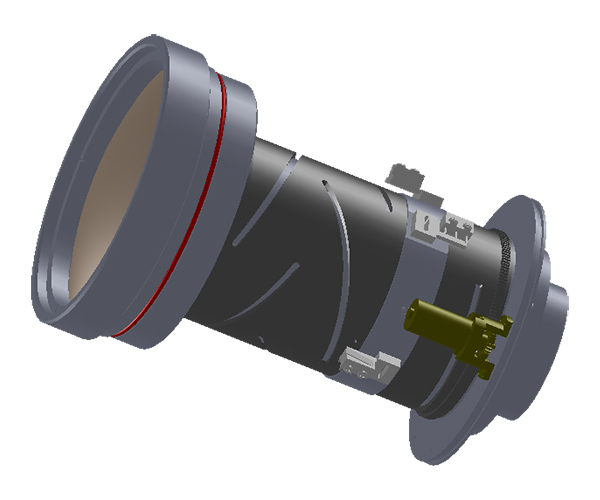

25-100 Zoom Lens

البند الرمز: 25-100

الفئة: عدسة الأشعة تحت الحمراء - عدسة التزويم في التصويرة

+86 (0)571 8720 9887 +86 (0)571 8512 5358 overseas@ulirvision.com evaxaiohz

Optical


Focal Length 25-100mm
F/no. 0.9--1.1
FOV F=25mm 24.60x13.50 F=100mm 6.30x4.50
Spectral range 8-12 µm
Average Transmission ≥75%

Mechanical


Focus Mechanism Motorized Adjustable
Focus Range F=25mm 3m˜∞
F=100mm 10m˜∞
Back Work Distance 22.24mm
Drive Voltage DC 6˜12V
Weight 1.9 k
Dimensions L191;Ф130

Environmental


Operating Temperature -400˜ +600
Storage Temperature -50°C to + 80°C
Sealing IP67 -front lens only
External Coating DLC
Mechanical Shock E-5400, Para.3.2.24.6.3
Vibration 810E
