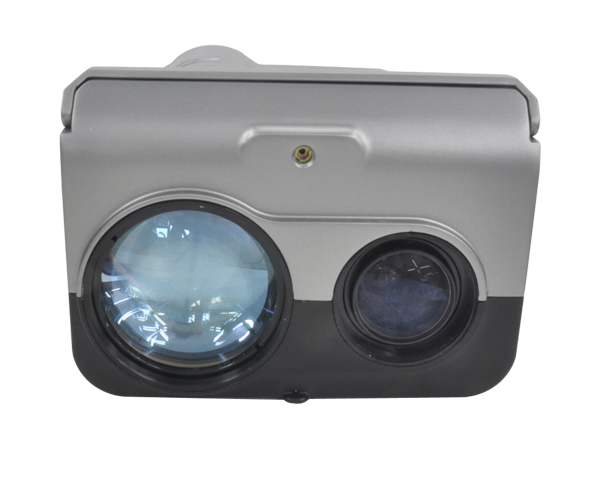

Corona Camera UVSee TD100

البند الرمز: TD100

الفئة: UVSee كورونا كاميرا - UVSee كورونا كاميرا

+86 (0)571 8720 9887 +86 (0)571 8512 5358 overseas@ulirvision.com evaxaiohz

TD100 is the latest Solar-blind UV camera which enables optical detection of UV signal in full daylight. With the high sensitivity to UV in the solar blind range, it is a powerful tool for detecting weak UV signals from long distance.

الميزات الرئيسية

◆ 240nm-280nm,Solar blind
◆ High sensitivity to UV signals
◆ Precise location of corona emitting sources
◆ Auto focus of UV and visible channels
◆ Light weight 1.5kg, low power consumption
◆ UV events counter
◆ UVSee report software for documentation

UV - Optical properties

UV sensitivity 2.2x10-18 watt/cm²
Minimum discharge detection 1 pC @ 10m
Minimum RIV sensitivity 3.6 dBμV @ 1MHz
Spectral range 240-280nm
FOV 7.2° x 5.4°
Focus Auto/Manual
Zoom 2x, 4x(optional)
Focus range 1.5m~∞
Detector life span No degradation

Visible - Optical properties

Minimum visible light sensitivity 0.1 Lux
Color Swtich between color and BW
Focus Auto/Manual
Focus range 1m~∞
Zoom 12x(Digital)、10x(Optical)

Image Performance

Image display Sun proof color LCD 5”, 800×480
Image modes Visible/UV/Combine
UV/Visible overlay accuracy 0.1 Lux
Status indicators Battery, Memory, Gain,Counting, Date, Selected functions, Focus,Inspection mode, corona color, GPS (access.), Temp &Humidity(access.)
User configuration settings Corona color (White, Red , Green, Yellow, Purple) Time, Sleep Mode, LI, LCD Parameters

Image Storage

Image format JPG
Video format AVI
Media download Via Card Reader, WIFI, USB, WIFI SD Card
Audio Stored with image
Playback Video/Pictures/Audio
SD card Removable SD card 32GB
Software upgrade Via files downloaded from website to SD Card
Storage capacity 1000+ images or >1 hr video/1GB

Control & Operation

Working modes Real time, standby, off
Control inputs Keypad and hot keys

Output Interface

Video output CVBS/HDMI(optional), PAL
Micro USB Data transfer, communication
USB USB WIFI
Tripod 1/4”-20

Power System

External power DC: 9V~12V
Battery type Rechargeable Li-Ion
Operation runtime 4hours
Power consumption 9W
Mains adaptor AC:110V~240V or DC: 50Hz~60Hz/9V 3.8A

Environmental Data

Operation temp range -15 ℃~+50℃
Storage temp range -25 ℃~+60℃
Humidity 90% (non-condense)
Encapsulation IP54
EMC CE, IEC1010-1

Physical Characteristics

Size 290mm×136mm×86mm
Weight 1.38kg

Packing

Standard Corona camera UVSee TD100, CD-ROM ( UVSee software and manual),USB Cable
Option Tripod
